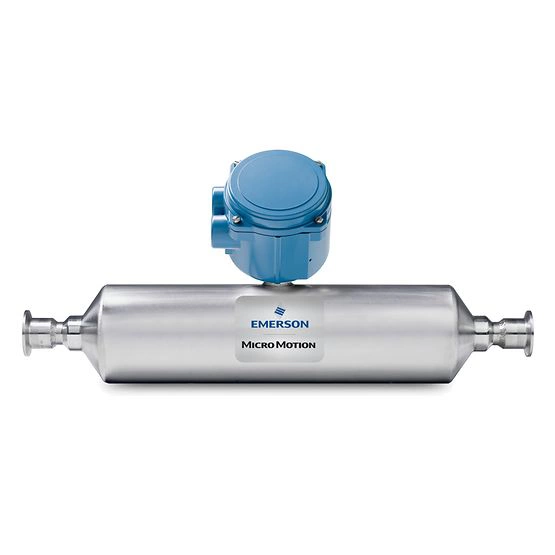

Micro Motion T050T613SQBNEZZZZZ — a micro motion t-series coriolis flow and density meter engineered for superb flow and density performance in a compact, reliable design.
Micro Motion T050T613SQBNEZZZZZ — a micro motion t-series coriolis flow and density meter engineered for demanding process applications with superb measurement performance and reliability.
Key Features
Measures mass flow, density, and temperature simultaneously in a single device
Flanged, Tri-Clamp, and hygienic process connections available
High accuracy up to 0.05% mass flow with density to 0.5 kg/m3
Explosion-proof and intrinsically safe certifications for hazardous locations
No moving parts for long service life and minimal maintenance
Wetted materials in 316L SST or nickel alloy C22 for process compatibility
Full Configuration Details
Complete Ordering Code: T050T613SQBNEZZZZZ
Coriolis Flowmeter Main Body - TSERIEST050T613SQBNEZZZZZ
TSERIES
Product Series
Micro Motion T-Series Coriolis Flow and Density Meter
T050
Sensor Model
T050 sensor, 0.5 in (DN15)
T
Wetted Material
Titanium, 30 Ra (0.76 µm) surface finish
613
Process Connection
0.5 in CL150 ASME B16.5 F316/F316L Socket weld flange Raised face
S
Case Option
1,450 psig (99.97 barg) containment
Q
Electronics Interface
4-wire polyurethane-painted aluminum integral core processor for remote transmitter (MVD)
B
Conduit Connection
1/2 in NPT - no gland
N
Approval
Micro Motion Standard / PED compliant (with CE/EAC markings)
E
Language
English installation manual
Z
Future Option 1
Future option
Z
Future Option 2
Reserved for future use (additional standard approvals)
Z
Calibration
±0.15% mass flow and 2 kg/m3 density calibration (±0.25% volume flow)
Z
Measurement Application Software
No measurement application software
Z
Factory Options
Standard product
