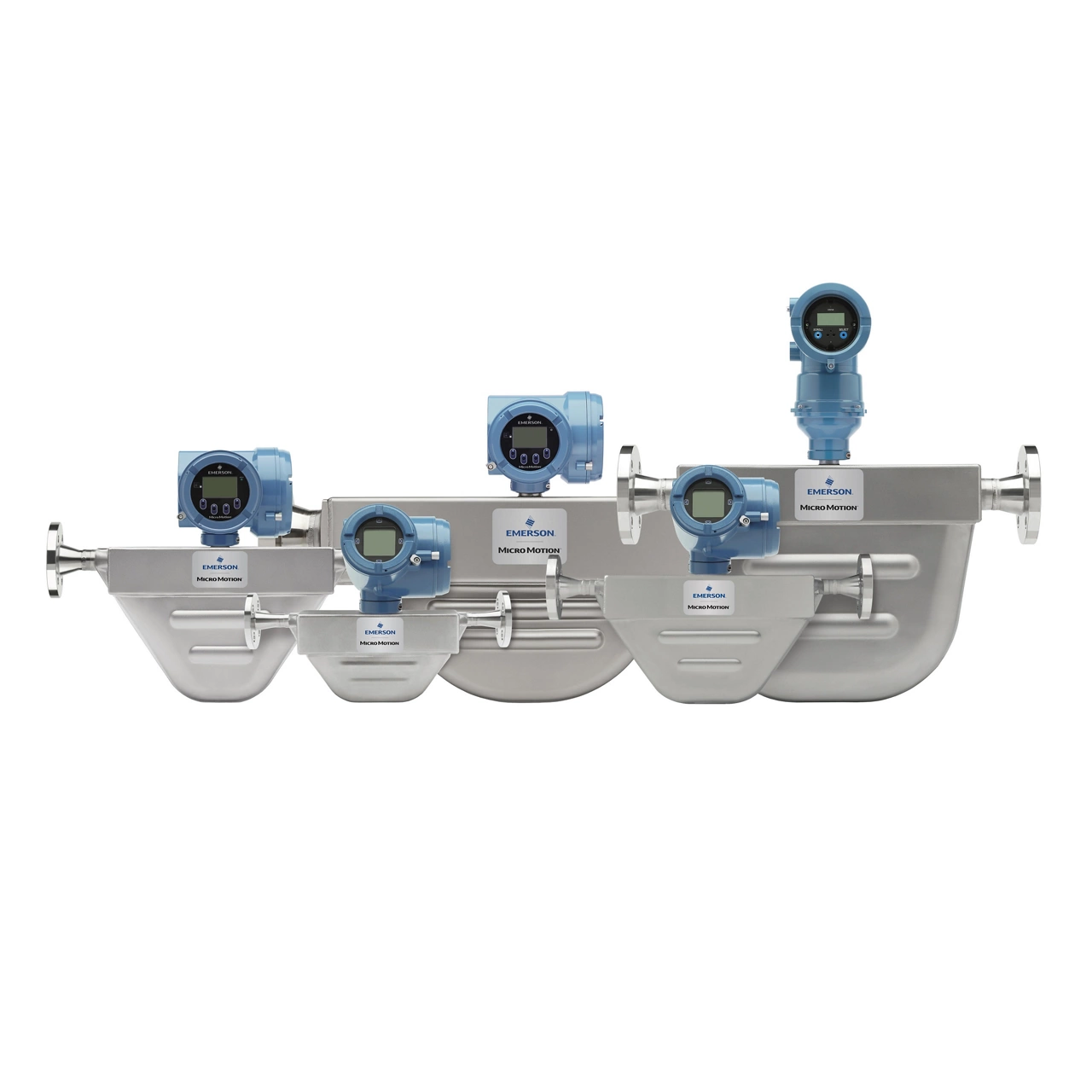

A coriolis flowmeter with no moving parts, the Micro Motion F200H540C0AMEZZZZ provides high-accuracy mass flow and density measurement for demanding applications.
Micro Motion F200H540C0AMEZZZZ — a coriolis flowmeter engineered for demanding process applications with superb measurement performance and reliability.
Key Features
Direct measurement of mass flow, volume flow, density, and temperature
High accuracy up to 0.05% mass flow with density to 0.5 kg/m3
Wide range of process connections: flanged, Tri-Clamp, and hygienic fittings
316L stainless steel and nickel alloy C22 wetted material options
Robust no-moving-parts design ensures years of reliable, maintenance-free operation
Hazardous-area approvals available (ATEX, IECEx, CSA, NEPSI, EAC)
Full Configuration Details
Complete Ordering Code: F200H540C0AMEZZZZ
Coriolis Flowmeter Main Body - FSERIESF200H540C0AMEZZZZ
FSERIES
Product Series
Coriolis Flowmeter
F200
Sensor Model
F200 sensor, 2 in (DN50)
H
Wetted Material
Nickel alloy C22
540
Process Connection
1.5 in CL150 ASME F304/F304L lap joint flange N06022 stub
C
Case Option
Compact case
0
Electronics Interface
For integral mount 2400S transmitter
A
Conduit Connection
0.75 in (19 mm) NPT - no gland
M
Approval
Micro Motion Standard (no approval)
E
Language
English installation manual
Z
Additional Standard Approval
No additional standard approval options selected
Z
Calibration
0.20% mass and 2 kg/m3 density calibration
Z
Measurement Application Software
No measurement application software
Z
Factory Options
Standard product
Pricing & Availability
Ready stock, factory-direct pricing, and 48-hour dispatch via DHL/FedEx worldwide. 100% genuine units with 1-year warranty. Get a bulk quote within 12 hours.
