8600DF020SA1N1D1Q8 Rosemount Vortex Flowmeter (4-20mA HART) Bulk Price

8600DF020SA1N1D1Q8 Rosemount Vortex Flowmeter (4-20mA HART) Bulk Price

8600DF020SA1N1D1Q8

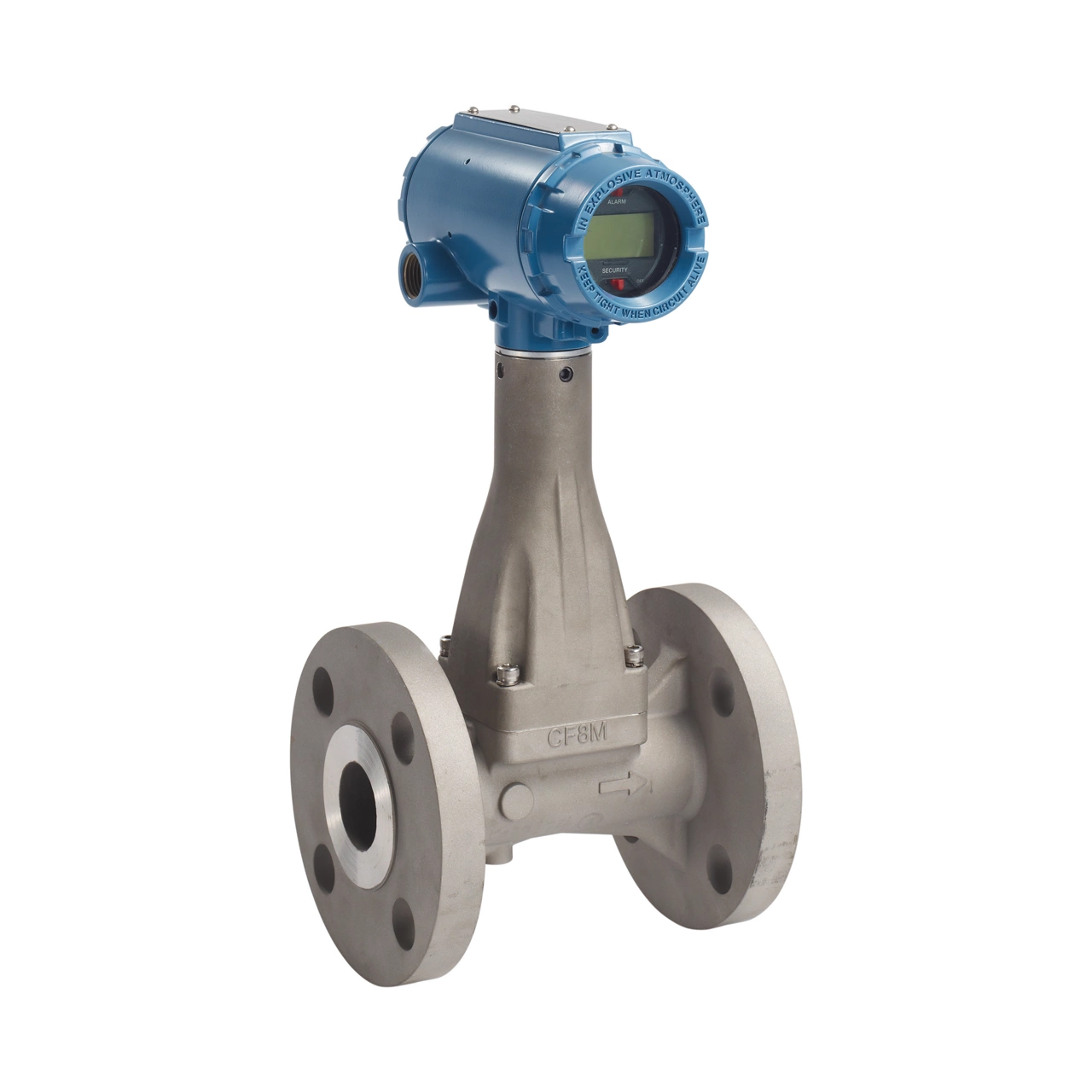

The Rosemount 8600DF020SA1N1D1Q8 is an all-welded vortex flowmeter with no impulse lines, ports, or gaskets for reliable steam, gas, and liquid flow measurement.

Request A Quote
Whatsapp Us

★★★ Gold-Tier Rosemount Supplier in China

  • 复选标记 100% Genuine & Brand New
  • 复选标记 Global Fast Shipping via DHL/FedEx
  • 复选标记 Fast Quotation within 12 Hours
  • 复选标记 1-Year Warranty Guaranteed
SKU： 8600DF020SA1N1D1Q8 分类： , 标签： , , ,

The Rosemount 8600DF020SA1N1D1Q8 is an all-welded vortex flowmeter with CF-8M cast stainless / CF-3M and Graphite Gasket wetted materials for reliable steam, gas, and liquid flow measurement.

Key Features

  • Wetted material options: 316/316L SST, nickel alloy, and duplex stainless steel
  • Fully welded construction eliminates ports and gaskets for maximum reliability
  • Multiple output protocols for flexible integration with control systems
  • Explosion-proof and intrinsically safe certifications for hazardous locations
  • SIL 2/3 capable — certified for use in safety instrumented systems
  • Optional backlit LCD indicator and Smart Fluid Diagnostics

Full Configuration Details

Complete Ordering Code:
8600DF020SA1N1D1Q8
Vortex Flowmeter Main Body - 8600DF020SA1N1D1
8600D
Product Series
Vortex Flowmeter
F
Meter Style
Flanged style
020
Line Size
2 in. (50 mm) line size
S
Wetted Material
CF-8M cast stainless / CF-3M and Graphite Gasket (316/316L)
A1
Process Connection
ASME B16.5 (ANSI) RF Class 150
N
Sensor Process Temperature Range
Standard: -58 to 482 F (-50 to 250 C)
1
Housing Material and Conduit Entries
1/2-14 NPT - Aluminum Housing
D
Output
4-20 mA digital electronics (HART protocol)
1
Calibration
7 Point Flow Calibration
Optionals - Q8
Q8
Certification Options
Material traceability certification per ISO 10474 3.1B and EN 10204 3.1

Pricing & Availability

Ready stock, factory-direct pricing, and 48-hour dispatch via DHL/FedEx worldwide. 100% genuine units with 1-year warranty. Get a bulk quote within 12 hours.

Request a Quote

Email: sales@gt-exim.com  |  WhatsApp: +86 17719526488

Full Configuration Details

Complete Ordering Code:
8600DF020SA1N1D1Q8
Vortex Flowmeter Main Body - 8600DF020SA1N1D1
8600D
Product Series
Vortex Flowmeter
F
Meter Style
Flanged style
020
Line Size
2 in. (50 mm) line size
S
Wetted Material
CF-8M cast stainless / CF-3M and Graphite Gasket (316/316L)
A1
Process Connection
ASME B16.5 (ANSI) RF Class 150
N
Sensor Process Temperature Range
Standard: -58 to 482 F (-50 to 250 C)
1
Housing Material and Conduit Entries
1/2-14 NPT - Aluminum Housing
D
Output
4-20 mA digital electronics (HART protocol)
1
Calibration
7 Point Flow Calibration
Optionals - Q8
Q8
Certification Options
Material traceability certification per ISO 10474 3.1B and EN 10204 3.1
