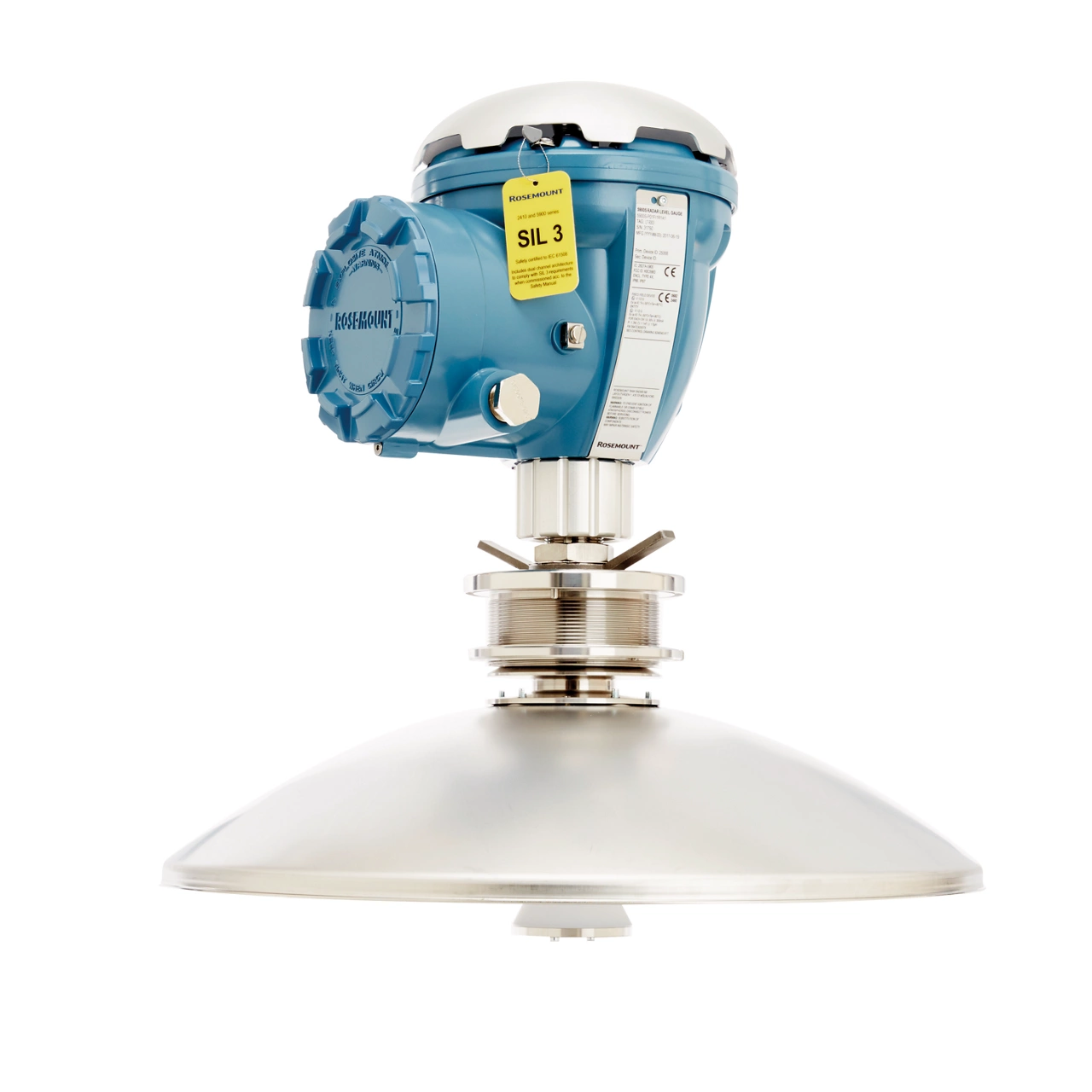

A level transmitter engineered for accuracy and long-term stability, the Rosemount 5900SP01FNA01A11A5SHH5A0 handles tough process conditions.
Key Features
Robust construction engineered for harsh industrial environments
Flexible mounting options for tight installation spaces
High accuracy and long-term stability for demanding process control
Full Configuration Details
Complete Ordering Code: 5900SP01FNA01A11A5SHH5A0
Transmitter Main Body - 5900S5900SP01FNA01A11A5SHH5A0
5900S
Product Series
Level Transmitter
5900S
Model
Radar Level Gauge
P
Performance Class
Premium: ±0.5 mm (0.020 in.) instrument accuracy
0
Safety Certification (SIS)
None
1
Redundancy
None. Single radar level gauge electronics
F
Tankbus Power & Communication
Bus powered 2-wire FOUNDATION Fieldbus (IEC 61158)
NA
Hazardous Location Certification
None
0
Custody Transfer Type Approval
None
1
Level Measurement Method
10 GHz FMCW radar technology
A
Housing
Standard enclosure, polyurethane-covered aluminum. IP 66/67
1
Cable Entry / Conduit
1/2 - 14 NPT, female thread
1A
Antenna
Still-pipe array antenna
5
Antenna Size
5 in./DN 125, O=120 mm (4.7 in.)
S
Antenna Material
SST (AISI 316L / EN 1.4404) and PPS (polyphenylene sulfide)
HH
Tank Seal
Integrated hatch installation with fluorosilicone tank seal O-ring, and Viton hatch O-ring
5A
Tank Connection
5 in. Class 150
0
Antenna Options
None
