Micro Motion R025P178NRANEZYZZ Transmitter | High Precision | Bulk Price | Calibration Included
R025P178NRANEZYZZ

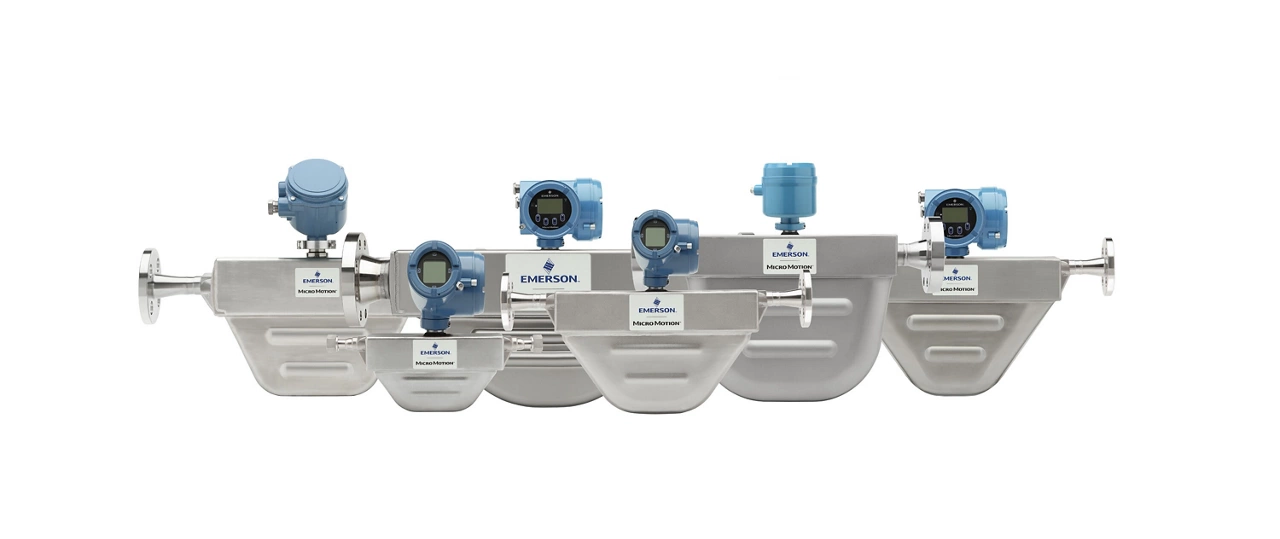

Micro Motion R025P178NRANEZYZZ — a micro motion r-series general purpose coriolis flow and density meter engineered for superb flow and density performance in a compact, reliable design.
Micro Motion R025P178NRANEZYZZ — a micro motion r-series general purpose coriolis flow and density meter engineered for demanding process applications with superb measurement performance and reliability.
Key Features
Wide range of process connections: flanged, Tri-Clamp, and hygienic fittings
316L stainless steel and nickel alloy C22 wetted material options
Robust no-moving-parts design ensures years of reliable, maintenance-free operation
Exceptional accuracy: 0.05-0.20% mass and density to 0.5-2 kg/m3
Measures mass flow, density, and temperature simultaneously in a single device
Hazardous-area approvals available (ATEX, IECEx, CSA, NEPSI, EAC)
Full Configuration Details
Complete Ordering Code: R025P178NRANEZYZZ
Coriolis Flowmeter Main Body - RSERIESR025P178NRANEZYZZ
RSERIES
Product Series
Micro Motion R-Series General Purpose Coriolis Flow and Density Meter
R025
Sensor Model
R025 sensor, 0.25 in (DN6)
P
Wetted Material
High pressure (stainless steel)
178
Process Connection
DN15 PN100 EN 1092-1 F316/F316L Weld neck flange Type D
N
Case Option
Standard case
R
Electronics Interface
9-wire polyurethane-painted aluminum junction box
A
Conduit Connection
0.75 in NPT - no gland
N
Approval
Micro Motion Standard / PED compliant
E
Language
English installation manual
Z
Future Option 1
Future option
Y
Calibration
0.5% mass flow and 0.01 g/cm3 (10 kg/m3) density calibration
Z
Future Option 3
Reserved for future use
Z
Factory Options
Standard product
Pricing & Availability
Ready stock, factory-direct pricing, and 48-hour dispatch via DHL/FedEx worldwide. 100% genuine units with 1-year warranty. Get a bulk quote within 12 hours.
