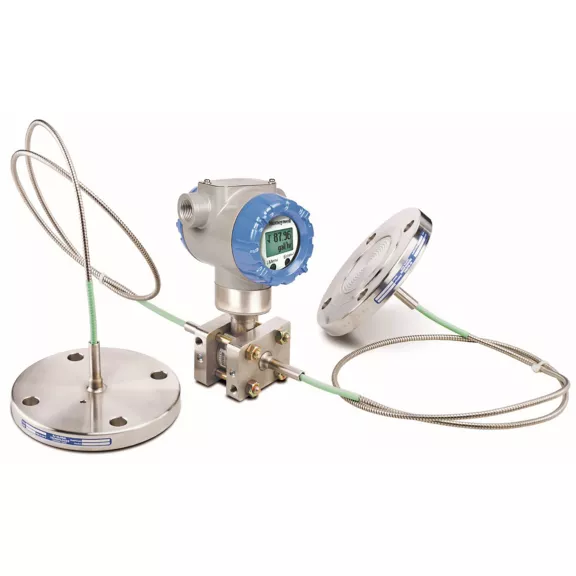

Honeywell STR73D-21CS1A0-AFAAA11A0-C-DD0-11S-A-21A0-F1-0000 SmartLine Remote Seal Transmitter 100 psi
Honeywell STR73D-21CS1A0-AFAAA11A0-C-DD0-11S-A-21A0-F1-0000 remote diaphragm seal transmitter, 100 psi (7.0 bar) URL, 316L Stainless Steel seal diaphragm, Honeywell DE, ATEX. 0.075% span accuracy, SIL 2/3. factory-direct price with bulk pricing. Send full part number for a quote within 12 hours.
★★★ Gold-Tier Honeywell Supplier in China
- 100% Genuine & Brand New
- Global Fast Shipping via DHL/FedEx
- Fast Quotation within 12 Hours
- 1-Year Warranty Guaranteed
The Honeywell STR73D-21CS1A0-AFAAA11A0-C-DD0-11S-A-21A0-F1-0000 is a SmartLine remote diaphragm seal transmitter with an upper range limit of 100 psi (7.0 bar) for differential pressure measurement. This configuration is built with a 316L Stainless Steel seal diaphragm, Honeywell DE communication, and ATEX approval. It delivers accuracies up to 0.075% of span, stability up to 0.020% of URL per year for 10 years, and response times as fast as 100 ms, with full SIL 2/3 compliance and an integral dual seal design.
Ordering Code Breakdown
| Section | Code | Description |
|---|---|---|
| Model | STR73D | Differential Pressure, 100 psi (7.0 bar) URL |
| Meter Body & Capillary | 21CS1A0 | 2 remote seals, Silicone 200 fill, 316 SS bolts, 5 ft SS-armored capillary |
| Seal Assembly | AFAAA11A0 | Flush flanged seal, 3.5″ diaphragm, 3″ ANSI CL150 flange, 316L Stainless Steel wetted, center seal connection |
| Approval | C | ATEX |
| Electronics | DD0 | Aluminum M20 housing with lightning protection, Honeywell DE |
| Configuration | 11S | Standard diagnostics, factory standard configuration |
| Calibration | A | Standard calibration |
| Accessories | 21A0 | Angle pipe mounting bracket (304 SS), stainless steel tag |
| Certification | F1 | Calibration test report & certificate of conformance |
Key Features
- Upper range limit 100 psi (7.0 bar)
- Reference accuracy 0.075% of span
- Stability up to 0.020% of URL per year for 10 years
- Capillary-connected remote seal isolates high-temp, viscous & corrosive media
- Piezoresistive sensor with automatic static pressure & temperature compensation
- Response time as fast as 100 ms
- Integral dual seal design (ANSI/NFPA 70-202, ANSI/ISA 12.27.0)
- Full SIL 2/3 compliance
- NAMUR NE-107 extended diagnostics
No specification data found.
Factory-Direct Price & Fast Shipping
We supply Honeywell STR700 SmartLine remote diaphragm seal transmitters factory-direct with competitive bulk pricing. Send us the full part number (or your required range, seal material, capillary length, and approval) and we quote within 12 hours. Units are made-to-order or ready stock, 100% genuine with a 1-year standard warranty (up to 4-year extended available).
Request a Quote
Email: sales@gt-exim.com | WhatsApp: +86 17719526488
No specification data found.
Documents
Datasheet:
Manuals:
