H025FC70NRANEZZZZ

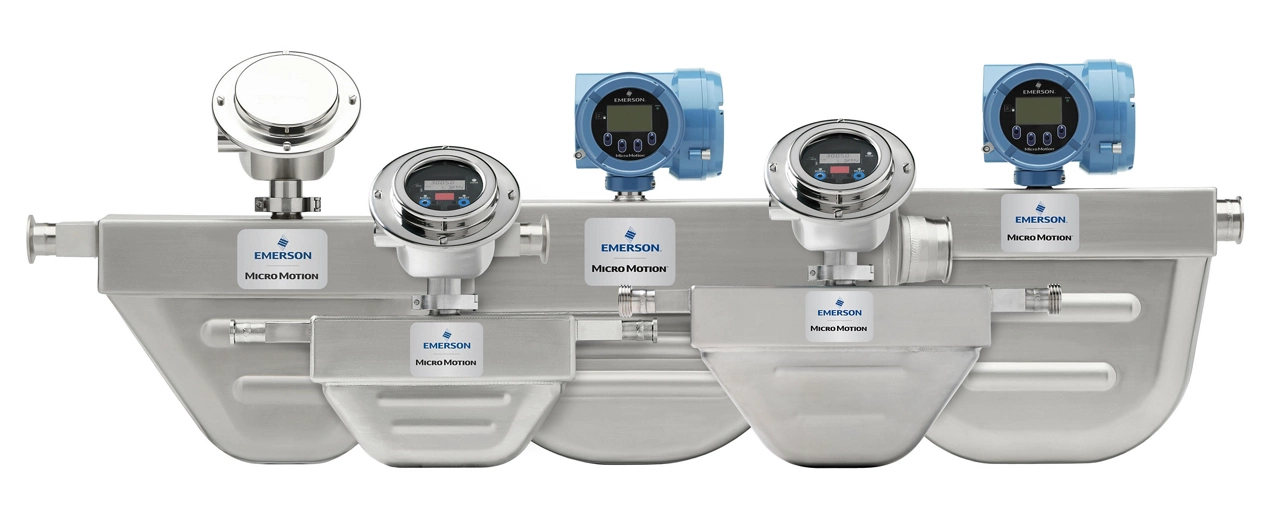

The Micro Motion H025FC70NRANEZZZZ is a micro motion h-series hygienic coriolis flow and density meter delivering direct mass flow, density, and volume measurement for liquids, gases, and slurries.
The Micro Motion H025FC70NRANEZZZZ is a micro motion h-series hygienic coriolis flow and density meter delivering direct mass flow, density, and volume measurement for liquids, gases, and slurries.
Key Features
Wide range of process connections: flanged, Tri-Clamp, and hygienic fittings
High accuracy up to 0.05% mass flow with density to 0.5 kg/m3
Wetted materials in 316L SST or nickel alloy C22 for process compatibility
Hazardous-area approvals available (ATEX, IECEx, CSA, NEPSI, EAC)
No moving parts for long service life and minimal maintenance
Direct measurement of mass flow, volume flow, density, and temperature
Full Configuration Details
Complete Ordering Code: H025FC70NRANEZZZZ
Coriolis Flowmeter Main Body - HSERIESH025FC70NRANEZZZZ
HSERIES
Product Series
Micro Motion H-Series Hygienic Coriolis Flow and Density Meter
H025
Sensor Model
H025 sensor, 0.25-0.5 in (DN6-DN13)
F
Wetted Material
316L stainless steel, 15 Ra (0.38 µm) finish
C70
Process Connection
DN15 DIN11864-2A 316L Hygienic flange
N
Case Option
Standard case
R
Electronics Interface
9-wire polyurethane-painted aluminum junction box
A
Conduit Connection
No gland
N
Approval
Micro Motion Standard / PED compliant (with CE/EAC markings)
E
Language
English installation manual
Z
Additional Standard Approval
Reserved for future use (additional standard approval)
Z
Calibration
±0.15% mass and 2 kg/m3 density calibration
Z
Measurement Application Software
No measurement application software
Z
Factory Options
Standard product
